Connector > Electronics Connector > Battery Connector

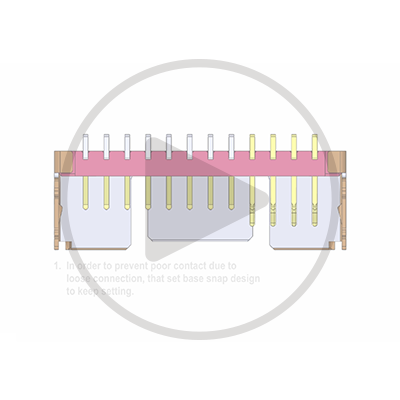

Battery Connector
2.00 mm Pitch
5/6/7/8/9 Pin
| 型號 | 品名 | 圖片 | Pin數 | Pitch(mm) | 類型 | 安裝技術 | 操作方向 | 產品長度(mm) | 產品寬度(mm) | 產品高度(mm) | PCB板上高(mm) | 對應零件 | 電流(A) | 額定電壓(V) | 壽命測試 | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HD09N-SRA1 | 9P MALE BATTERY |
|

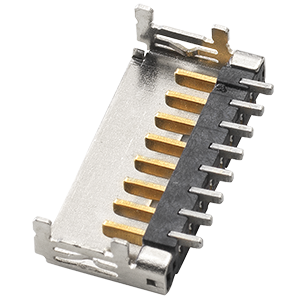

9 | 2.00 | Male | DIP | 9.10 | 18.80 | 4.00 | 4.00 | HD07S-KFA2 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| HD08N-SRA1 | 8P MALE BATTERY |
|
8 | 2.0 | Male | DIP | 10.50 | 21.50 | 4.75 | 4.75 | UD08S-B132 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| HD08S-KFB1 | 8P MALE BATTERY |
|

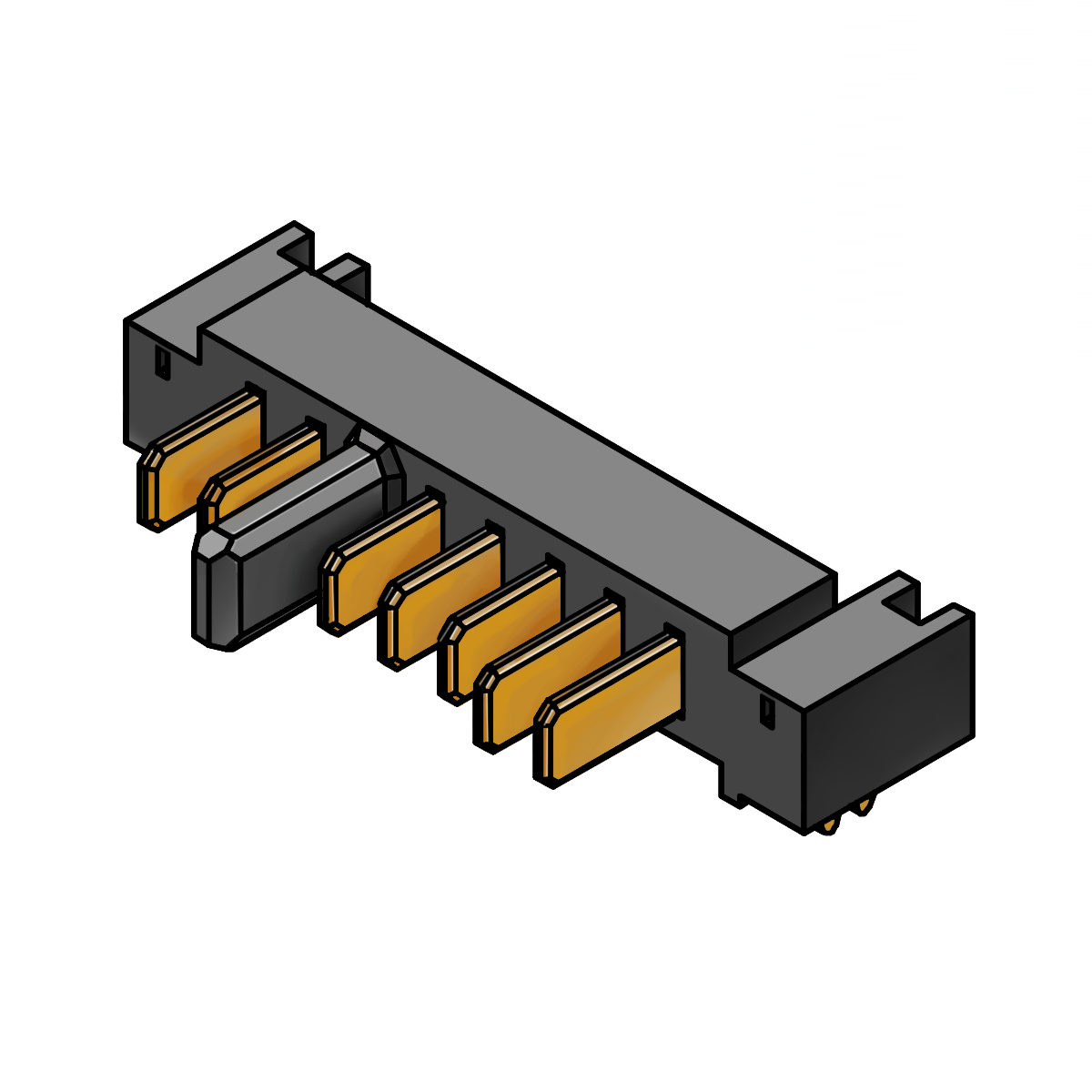

8 | 2.00 | Male | 11.50 | 21.50 | 4.75 | UD08S-B132 | 7.0 | 30.0 (DC) | 5000 Cycles | ||||
| HD07S-KFA2 | 7P MALE BATTERY |
|
7 | 2.00 | Male | DIP | 11.40 | 22.60 | 6.00 | 6.00 | UD07S-KFA2 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| HD07S-KFA1 | 7P MALE BATTERY |
|
7 | 2.00 | Male | DIP | 11.40 | 22.60 | 5.60 | 5.60 | UD07S-KFA1 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| UD08S-KFA1 | 8P FEMALE BATTERY |
|
8 | 2.00 | Female | DIP | 7.00 | 28.00 | 7.70 | 7.70 | HD08N-SRA1 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| UD08S-B132 | 8P FEMALE BATTERY |
|
8 | 2.00 | Female | DIP | 7.00 | 28.00 | 6.70 | 6.70 | HD08S-KFB1 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| UD07S-KFA2 | 7P FEMALE BATTERY |
|
7 | 2.00 | Female | DIP | 10.10 | 23.50 | 5.60 | 5.60 | 8.0 (Per Pin) | 50.0 (DC) | 5000 Cycles | |||
| UD07S-KFA1 | 7P FEMALE BATTERY |
|
7 | 2.00 | Female | DIP | 9.10 | 18.80 | 4.00 | 4.00 | HD07S-KFA1 | 7.0 | 30.0 (DC) | 5000 Cycles | ||
| WPF2-14-R-01 | 14P WTB Board Side 1.25mm Pitch |
|
14 | 1.25 | Male | SMT | S/R, R/A | 6.90 | 20.00 | 3.00 | 2.00 | 2HW-M0-14-PB03 | 5.0 | 12.0 (DC) | 30 Cycles | |
| HD12S-WTA5 | 12P WTB Board Side |
|
12 | 1.25 | Male | SMD | S/R, R/A | 17.50 | 3.00 | UD12N-WAT1 | 4.5 | 12.0 (DC) | 30 Cycles | N/A | ||
| HD12S-WTB1 | 12P WTB Board Side |
|
12 | 1.25 | Male | DIP | S/R, R/A | 17.50 | 3.00 | UD12N-WTB1 | 4.5 | 12.0 (DC) | 30 Cycles | |||
| WPF2-10-T01 | 10P WTB Board Side 1.25 Pitch |
|
10 | 1.25 | Male | SMT | S/R, R/A | 6.90 | 15.00 | 3.00 | 2.00 | 2H-M2-10-PB01 | 5.0 | 12.0 (DC) | 30 Cycles | |
| HD08D-WTA0 | 8P WTB Board Side |
|
8 | 1.25 | Male | SMD | S/R, R/A | 6.90 | 15.10 | 2.00 | 1.25 | 2HW-M0-08-PBA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A |
| HD08S-WTA1 | 8P WTB Board Side |
-200.png)
|
8 | 2.00 | Male | DIP | S/R, R/A | 6.90 | 15.10 | 2.00 | 2.00 | 2HW-M0-08-PBA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A |
| HD08S-WTB2 | 8P WTB Board Side |
-200.png)
|
8 | 1.25 | Male | DIP | S/R, R/A | 6.90 | 15.10 | 2.00 | 2.00 | 2HW-M0-08-PBA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A |
| HD08D-WTB0 | 8P WTB Board Side SMD |
|
8 | 1.25 | Male | SMD | S/R, R/A | 6.90 | 15.10 | 2.00 | 2.00 | 2HW-M0-08-PBA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | |
| HD08S-WTB1 | 8P WTB Board Side |
|
8 | 1.25 | Male | DIP | S/R, R/A | 6.90 | 15.10 | 2.00 | 2HW-M0-08-PBA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | ||
| 2HW-M0-14-PB03 | 14P WTB of Cable Side |
|
14 | 1.25 | Female | SMT | S/R, R/A | 5.40 | 19.30 | 2.00 | WPF2-14R-01 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | ||
| 2HW-M0-12-PBA2 | 12P WTB of Cable Side 1.25PH Main |
|
12 | 1.25 | Female | S/R, R/A | 5.40 | 1.90 | WPF2-10-T01 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | ||||
| UD12N-WTA1 | 12P WTB Cable Side |
|
12 | 1.25 | Female | SMD | S/R, R/A | 17.50 | 3.00 | HD12S-WTA5 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A | ||
| UD12N-WTB1 | 12P WTB Cable Side |
|
12 | 1.25 | Female | DIP | S/R, R/A | 17.50 | 3.00 | HD12S-WAT5 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A | ||
| 2HW-M2-10-PB01 | 10P WTB of Cable Side |
|
10 | 1.25 | Female | S/R, R/A | 5.90 | 17.20 | 2.00 | 2.00 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | |||
| 2HW-MO-08-PBA1 | 8P WTB of Cable Side 1.25PH Main. |
|
8 | 1.25 | Femail | S/R, R/A | N/A | N/A | N/A | N/A | HD08D-WTA0 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | ||
| UD08N-WTA1 | 8P WTB Cable Side |
|
8 | 1.25 | Female | SMD | S/R, R/A | HD08D-WTA0 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A | ||||
| UD08N-WTB1 | 8P WTB Cable Side |
|
8 | 1.25 | Female | DIP | S/R, R/A | HD08S-WTA1 | 4.5 (MAX) | 12.0 (DC) | 30 Cycles | N/A | ||||

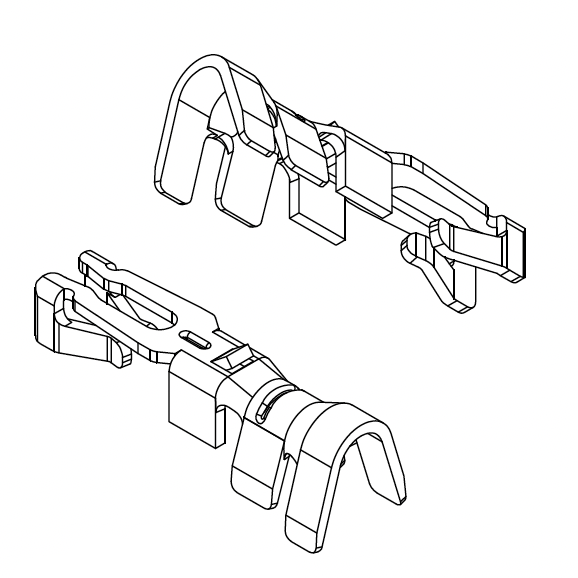

| TWP021A-A01001 | WTB 1.25PH Wire Side Terminal |
|
6.0 | 3.0 |
